Jayco Embark Motor Home Class A - Diesel RVs For Sale

Previous
Next
1 of 16

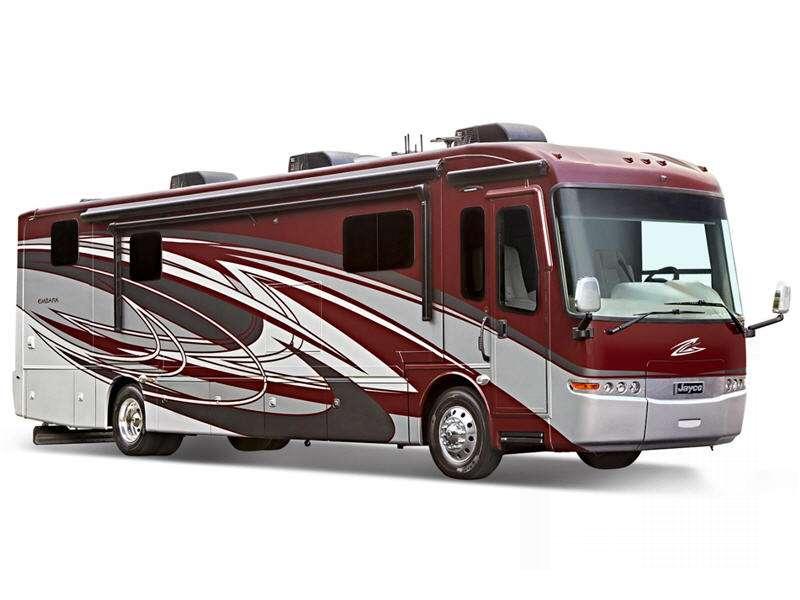

Take off to never-ending adventures in an Embark Class A diesel motorhome by Jayco! You can be sure to have a smooth ride wherever the road takes you thanks to the Spartan K1 raised-rail chassis, the Cummins B6.7 turbocharged 360 HP engine, plus the JRide Premium that includes independent front air suspension and more!



Each model is constructed with a one-piece fiberglass roof, a steel-reinforced front cap and windshield frame, and Sikkens custom full-body paint that is sure to turn heads as you travel down the interstate. You and your co-pilot will stay comfortable on 6-way power adjustable seats, and the driver will appreciate the Xite XSG4 infotainment system with a 9" touchscreen, iGO navigation, Siruis XM, and more. There are many convenient features to make each trip enjoyable, such as the tankless water heater, the Carefree awnings, the central vacuum system, and the list goes on. The interior will feel more like home with its hand-laid porcelain tiled floors, premium furniture, and solid surface countertops.



Whomever you decide to travel with, do so in luxury with an Embark Class A diesel motorhome by Jayco!

  • Embark 37K

    Embark 37K Floorplan Image

    Jayco Embark Class A diesel motorhome 37K highlights: Walk-Around King Bed 50" ... more about Embark 37K

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 4
    Length 37 ft 10 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Chateau, Mineral

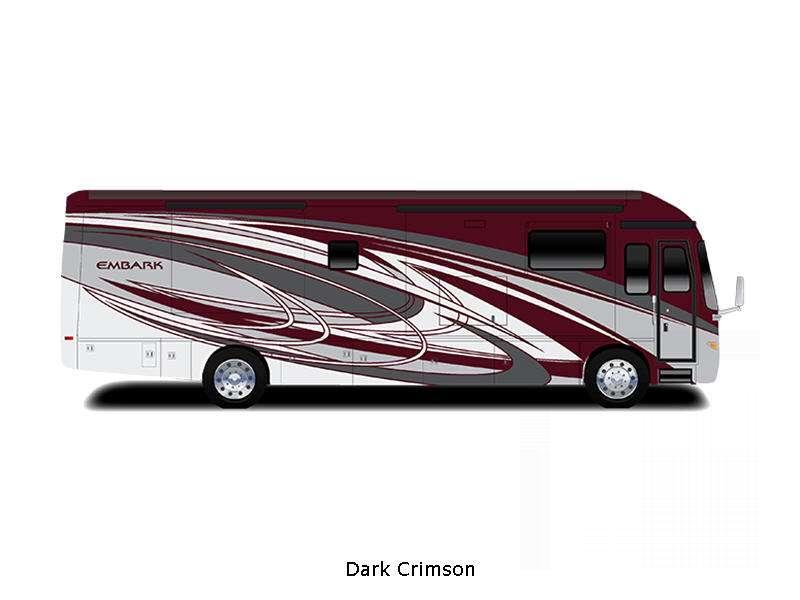

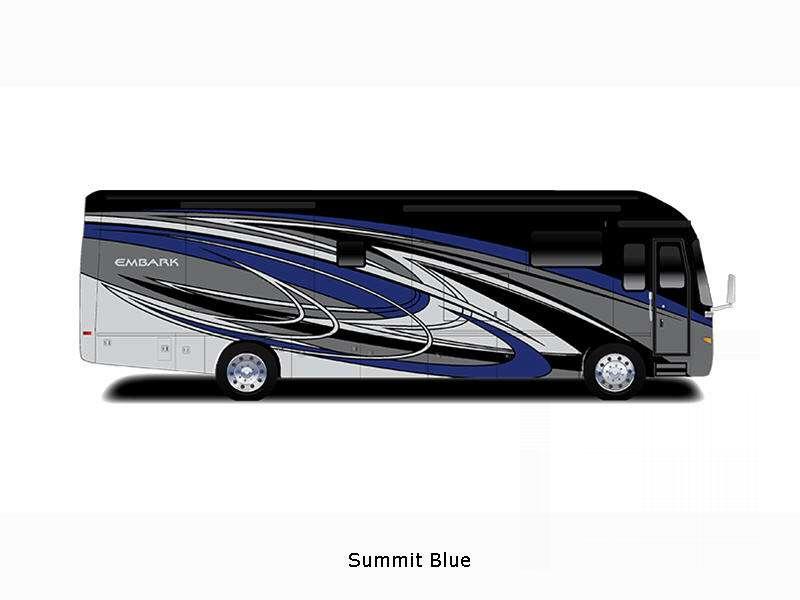

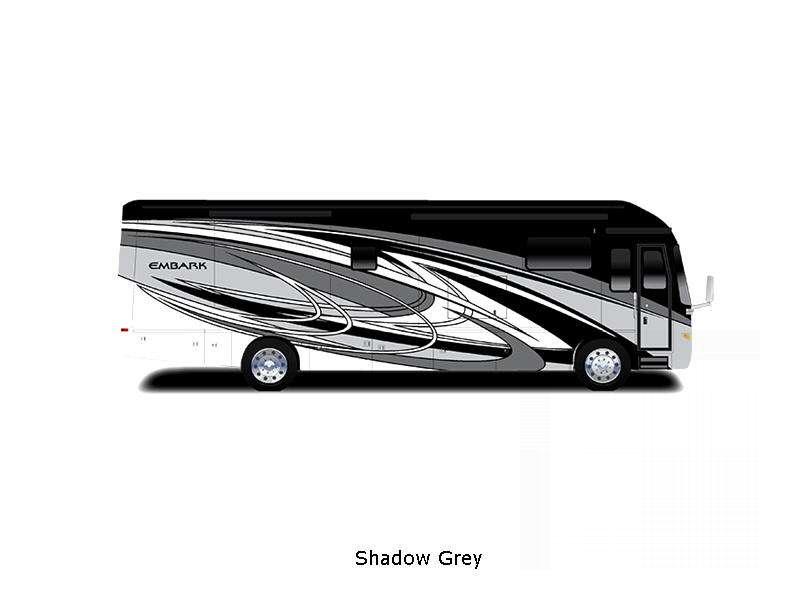

    Exterior Color Summit Blue, Shadow Grey, Dark Crimson
    Hitch Weight 10000 lbs
    Gross Weight 32600 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 62 gals
    Black Water Capacity 41 gals
    Tire Size 275/80R 22.5"
    Furnace BTU 35000 btu
    Generator Onan 8000 Watt Diesel
    Fuel Type Diesel
    Engine Cummins B6.7 Turbocharged
    Chassis Spartan K1 Raised Rail
    Horsepower 360 hp
    Fuel Capacity 100 gals
    Wheelbase 236 in
    Available Beds King
    Torque 800 ft-lb
    Refrigerator Type Whirlpool Residential
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 36" x 36"
    Number of Awnings 1
    Axle Weight Front 12600 lbs
    Axle Weight Rear 20000 lbs
    LP Tank Capacity 56 lbs
    Water Heater Type Tankless
    AC BTU 30000 btu
    Basement Storage 119 cu. ft.
    TV Info Coach 50" LED TV, BR 32" LED TV, Exterior TV
    Awning Info 17' Electric with LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 42600 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Embark 39BH

    Embark 39BH Floorplan Image

    Jayco Embark Class A diesel motorhome 39BH highlights: Bath and a Half ... more about Embark 39BH

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 3
    Length 39 ft 11 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Chateau, Mineral
    Exterior Color Summit Blue, Shadow Grey, Dark Crimson
    Hitch Weight 10000 lbs
    Gross Weight 36320 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 62 gals
    Black Water Capacity 41 gals
    Tire Size 275/80R 22.5"
    Furnace BTU 50000 btu
    Generator Onan 8000 Watt Diesel
    Fuel Type Diesel
    Engine Cummins B6.7 Turbocharged
    Chassis Spartan K1 Raised Rail
    Horsepower 360 hp
    Fuel Capacity 100 gals
    Wheelbase 261 in

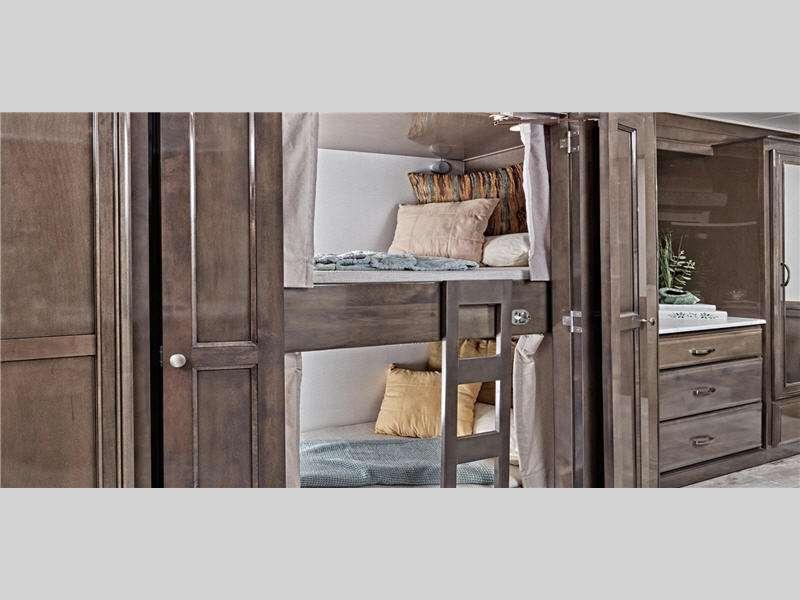

    Number Of Bunks 2
    Available Beds King
    Torque 800 ft-lb
    Refrigerator Type Whirlpool Residential
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 30" x 40"
    Number of Awnings 1
    LP Tank Capacity 56 lbs
    Water Heater Type Tankless
    AC BTU 45000 btu
    Basement Storage 154 cu. ft.
    TV Info LR 50" LED TV, BR 32" LED TV, Exterior TV
    Awning Info Electric with LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 46320 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Embark 39T2

    Embark 39T2 Floorplan Image

    Take a Virtual Tour

    Jayco Embark Class A diesel motorhome 39T2 highlights: Ceramic Tile Floor ... more about Embark 39T2

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 3
    Length 39 ft 11 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Chateau, Mineral
    Exterior Color Summit Blue, Shadow Grey, Dark Crimson
    Hitch Weight 10000 lbs
    Gross Weight 36320 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 62 gals
    Black Water Capacity 41 gals
    Tire Size 275/80R 22.5"
    Furnace BTU 50000 btu
    Generator Onan 8000 Watt Diesel
    Fuel Type Diesel
    Engine Cummins B6.7 Turbocharged
    Chassis Spartan K1 Raised Rail
    Horsepower 360 hp
    Fuel Capacity 100 gals
    Wheelbase 261 in
    Available Beds King
    Torque 800 ft-lb
    Refrigerator Type Whirlpool Residential
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 30" x 40"
    Number of Awnings 1
    LP Tank Capacity 56 lbs
    Water Heater Type Tankless
    AC BTU 45000 btu
    Basement Storage 152 cu. ft.
    TV Info LR 50" LED TV, BR 32" LED TV, Exterior TV
    Awning Info Electric with LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 46320 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

Embark Features:

Standard Features (2022)



Standard Driving Equipment

  • Spartan® K1 raised-rail chassis
  • Cummins® B6.7 turbocharged 360-HP engine with 800-lb. ft. torque at 1,800 RPM
  • Allison® 3,000 MH 6-speed transmission
  • Rear-mounted radiator
  • 170-amp alternator
  • 750-watt engine block heater
  • Variable geometry turbo (VGT) engine brake
  • Independent front air suspension (IFS) front axle- 12,600 lb. (37K) 14,320 lb. (39BH/39T2)
  • Rear axle - 20,000 lb. (37K) 22,000 lb (39BH/39T2)
  • 4.88 rear axle ratio
  • Michelin® 275/80R 22.5” tires
  • Bilstein® 46mm shocks
  • Tire pressure monitoring system (TPMS) with temperature monitoring
  • Equalizer™ hydraulic automatic coach leveling
  • Remote air connection
  • (2) 12V chassis batteries
  • 100-gal. fuel tank
  • 10-gal. DEF tank
  • Spartan® Safehaul tow vehicle air brake system
  • 10,000-lb. hitch with 7-pin plug
  • Sani-Con® Macerator holding tank dump system with manual gate valves, manual backup and metal door
  • Black holding tank sprayer
  • City and tank water filtration system
  • Winterizing drain system

Standard Exterior Equipment

  • Roof: One-piece fiberglass with 3/8" plywood decking, 4" arched aluminum trusses, insulation and reflective Flexfoil® (R-24)
  • Sidewalls: Vacuum-bonded, high-gloss gelcoat with R-8 bead-foam insulation
  • Floors: Vacuum-bonded layers of Darco underbelly, a welded aluminum frame, R-9 bead-foam insulation, 3/8" Structurwood® and 1/4" plywood
  • X-Bridge™ bracing welded into chassis frame
  • Heated basement storage
  • Insulated front and rear caps (R-24)
  • Steel-reinforced front cap and windshield frame
  • Electric-powered slideout rooms
  • Carefree® power patio awning with LED lights
  • Carefree® power entrance door awning with LED lights
  • Carefree® slideout awnings
  • Carefree® window awnings
  • Frameless, dual-pane, tinted, safety-glass windows
  • Grab handle and keypad system for keyless entry
  • 43” Samsung® 4K UHD Smart TV with tilt, swivel, and extend adjustment
  • JBL radio and speakers with USB port and receptacle
  • Heated, remote-control, side-view mirrors with integrated cameras
  • Diamond Shield™ front protective film mask
  • Halogen high and low beam headlights and fog lights
  • Daytime running lights
  • LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights
  • Porch light
  • Mudflap with chrome “Entegra” nameplate
  • Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option
  • Winegard® TRAV’LER satellite dish Shaw TV - standard with CSA option
  • Winegard® Rayzar Z1 TV antenna
  • Winegard® WiFi extender with 4G/LTE
  • Solar power prep
  • Exterior utility center
  • Slideout basement storage tray
  • Sikkens custom full-body paint
  • Onan® 8,000-watt diesel generator, with automatic start, on slide-out tray
  • 2,000-watt pure sine wave inverter with 100-amp battery charger
  • (2) L16 AGM batteries (6V/390 amp hrs. ea.)
  • 50-amp power cord
  • Automatic transfer switch with surge protection
  • 24.5-gal. propane tank
  • Sani-Con® Macerator holding tank dump system with manual gate valves, manual backup and metal door
  • Black holding tank sprayer
  • City and tank water filtration system
  • Winterizing drain system

Standard Interior Equipment

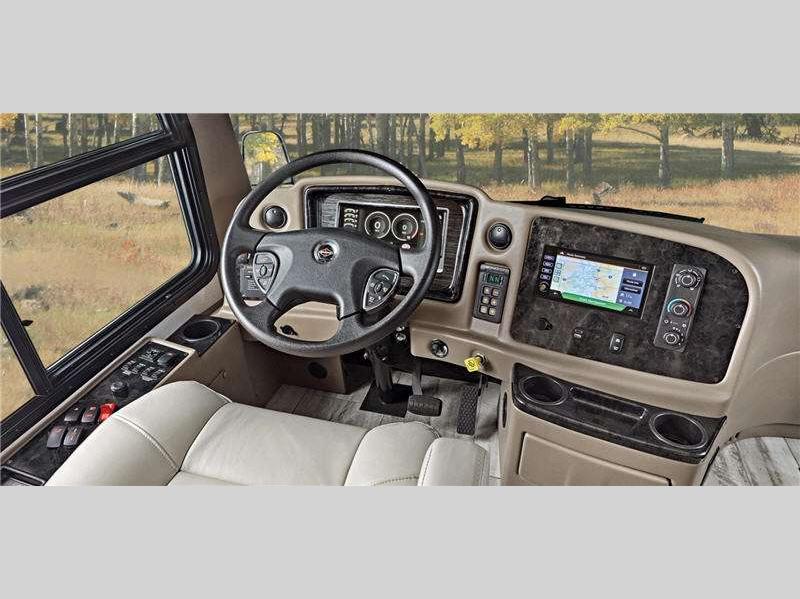

  • Valid 12.3" digital dash with quad core graphics processor, on-board diagnostics, selector knob and ability to display traditional instrument cluster, 360° camera system or GPS navigation
  • Xite™ 360° HD digital camera system
  • Xite™ XSG4 infotainment system with 9" touchscreen, iGO navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control and house mode whole-coach audio distribution
  • Steering wheel with integrated controls for cruise, wipers, radio and Bluetooth® phone functionality
  • Manual tilt and telescoping steering column
  • Ultra-Vision® one-piece wrap-around tinted windshield
  • 6-way power adjustable driver and passenger seats
  • Powered flush stepwell cover
  • Powered adjustable brake and accelerator pedals
  • Powered front sun visors and privacy shades
  • (2) dual USB ports and (2) 12V sockets for charging
  • JAYCOMMAND® powered by Firefly with 7” VegaTouch touchscreen for complete integration of coach controls (mobile app available)
  • (3) 15,000-BTU A/C units with heat pumps [(2) 15,000-BTU units with heat pumps on 37K]
  • 35,000-BTU furnace (37K) / (1) 20,000 and (1) 30,000 (39BH, 39T2)
  • Tankless gas water heater
  • LED-lit fireplace with 5,000-BTU heating element (37K only)
  • 50” Samsung® 4K UHD Smart TV
  • Samsung® sound bar with subwoofer
  • Sony® Blu-ray™ player

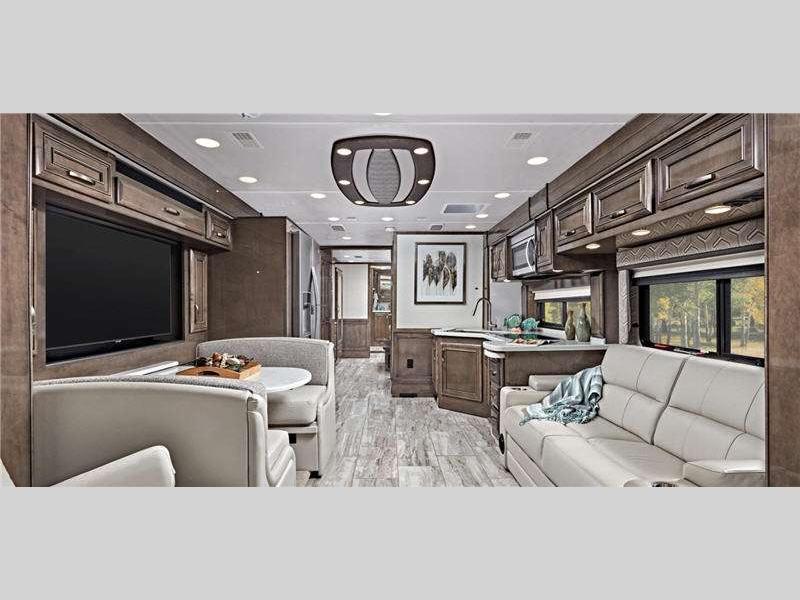

  • Premium furniture

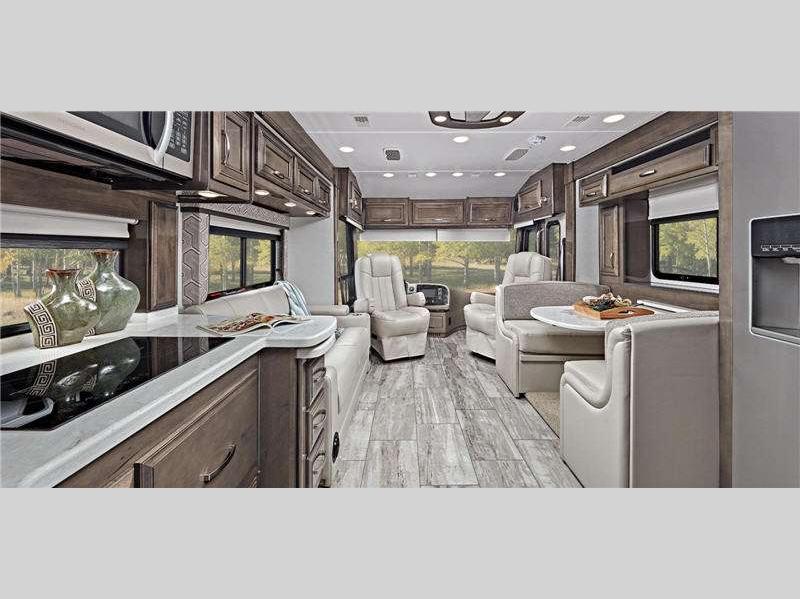

  • Hand-laid porcelain tiled floors
  • LED interior lighting
  • Decorative ceiling feature with integrated accent lighting
  • Manual solar day shades and blackout night shades
  • Central vacuum system
  • Removable screen on entry door
  • Window with slider and screen
  • Whirlpool® stainless-steel residential refrigerator with ice maker and water dispenser
  • Induction cooktop
  • 1.5-cu. ft. convection microwave oven
  • Solid-surface countertops with stainless steel sink
  • Fan-Tastic power exhaust fan with intake

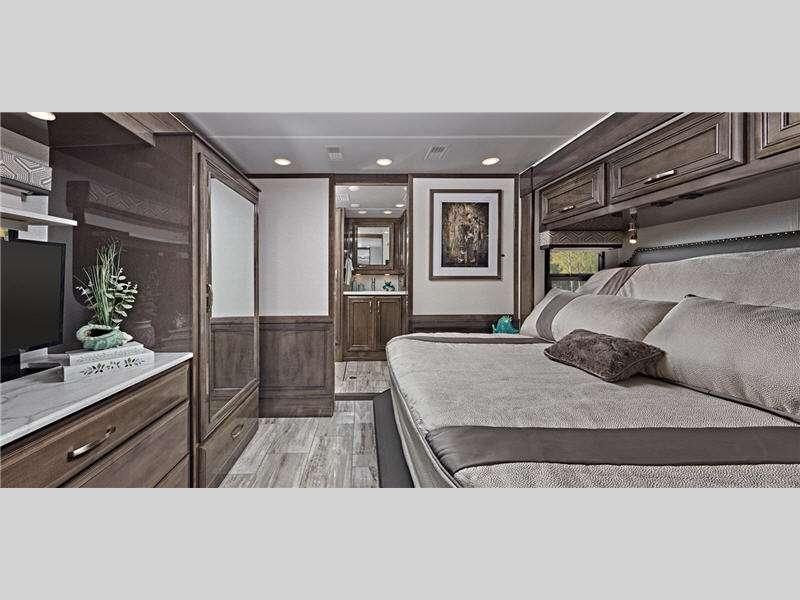

  • King-size pillow-top mattress on tilt bed
  • 32" Samsung® LED 1080P Smart TV
  • Sony® Blu-ray™ player
  • Solid-surface countertops with integrated sink

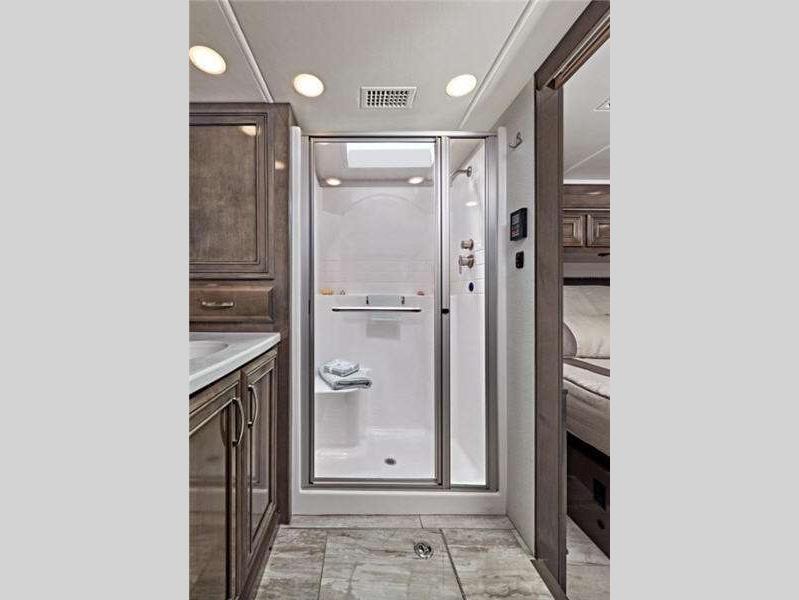

  • One-piece fiberglass shower with skylight
  • Aqua View SHOWERMI$ER™ water saving system
  • Thetford® Aqua Magic toilet with foot flush
  • Fan-Tastic power exhaust fan with intake

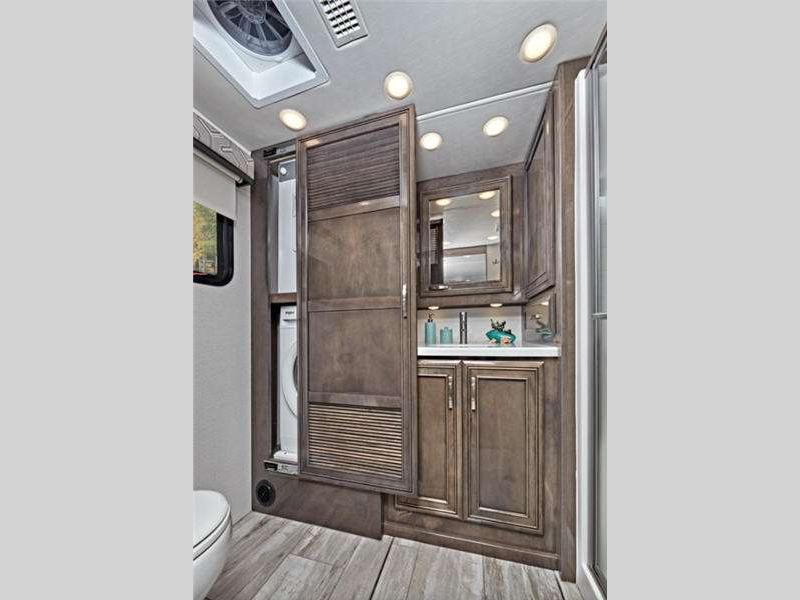

  • Whirlpool® stacked washer and dryer
  • Combination carbon monoxide detector and LP gas alarm
  • Smoke alarm

Customer Value Package (Mandatory)

  • Onan® 8,000-watt diesel generator, with automatic start, on slide-out tray
  • 2,000-watt pure sine wave inverter with 100-amp battery charger
  • (3) 15,000-BTU A/C units with heat pumps [(2) 15,000-BTU units with heat pumps on 37K]
  • Equalizer™ hydraulic automatic coach leveling
  • Xite™ 360° HD digital camera system
  • Carefree® power patio awning with LED lights
  • 43” Samsung® 4K UHD Smart TV with tilt, swivel, and extend adjustment
  • Manual solar day shades and blackout night shades

Options

  • Canadian standards (CSA)
  • Theater seating with power recliners
  • Winegard® in-motion satellite dome
  • Winegard® TRAV’LER satellite dish Dish Network®

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
