KEEP ON ROLLING

Uncompromising construction and design makes the reliable 2019 Redhawk one of the best values in its class.

A premium ride

The Redhawk Class C motorhome is equipped with Jayco’s exclusive JRide® package, which includes a computer-balanced driveshaft, standard front and rear stabilizer bars, Hellwig® helper springs and rubber isolation body mounts.

Comforts galore

A 15,000-BTU ducted A/C and 31,000-BTU furnace with wall thermostat and auto-ignition helps adapt to your destinations. A 12V demand water pump and 6-gallon gas/electric DSI auto-ignition water heater plus filtration manage your water.

A step above

An LED-lit outdoor kitchen with a two-burner cooktop, the sink with a tank-connected drain and a mini refrigerator and added counter space make up an outdoor kitchen that is rarely found on Class C motorhomes like the Redhawk.

Powered to ride

The Redhawk is built on a Ford E-450 chassis that’s specially built to support the 7,500-pound hitch and its 750-pound tongue. The Triton® 6.8L, V10, 305 HP engine includes a 6-speed automatic TorqShift® series transmission with overdrive.

Entertainment of all kinds

If you’re taking a break from the outdoors, you’ll enjoy the 32-inch LED TV in the main living area that’s equipped with cable TV hookup and RG-6 coax.

Storage, storage everywhere

Jayco takes every opportunity to add convenient storage spaces throughout the Redhawk Class C motorhome including under the queen-sized bed that comes standard on all floorplans.

Your home on the road

The Redhawk living area features linoleum flooring, LED lighting throughout and an 84-inch tall ceiling, and an 8 cubic-foot, flush-mount, double-door refrigerator.

New dinette design

Go ahead and stretch out as you gather for the big meal of the day, a quick bite or morning coffee thanks to this Jayco-exclusive, easy-to-operate legless dinette design.

Comfy cooking

The Redhawk features a 3-burner range with a 9,000-BTU SuperBurner™ and piezo igniter, a convection microwave (n/a only on floorplan pictured, 31XL), 75-pound ball bearing drawer guides and a water filtration system.

Safety first

Jayco installs seatbelts in all seating positions—protecting the most precious cargo.

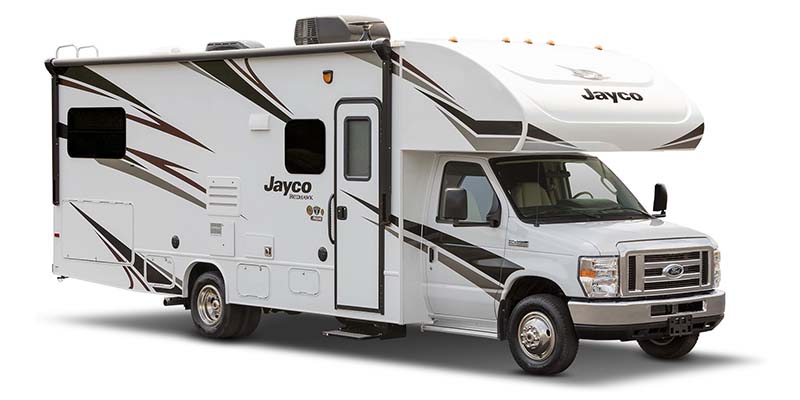

Jayco Redhawk Motor Home Class C

Top notch construction

Redhawk’s roof, floor and sidewalls are built with Jayco’s exclusive Stronghold VBL vacuum-bonding and lamination process and added bead-foam insulation for durability and easier climate management.

Industry’s sturdiest bunk

A full cab-over bunk with an industry-leading 750-pound rating and a 32-inch LED HDTV are standard in all Redhawk floorplans.

Drive on!

Cruise safely and comfortably thanks to power windows, remote-controlled sideview mirrors, a backup camera, cruise control, a tilt steering wheel, power anti-lock brakes and steering with driver and passenger air bags.

Seamless front cap

Jayco pays special attention to this crucial area of the coach. The one-piece, seamless, fiberglass front cap resists moisture and stands up to road or campsite debris.

Safety lighting

All Jayco motorhomes feature a third brake light for added on-the-road safety—helping alert fellow travelers when you slow down.

A family coach

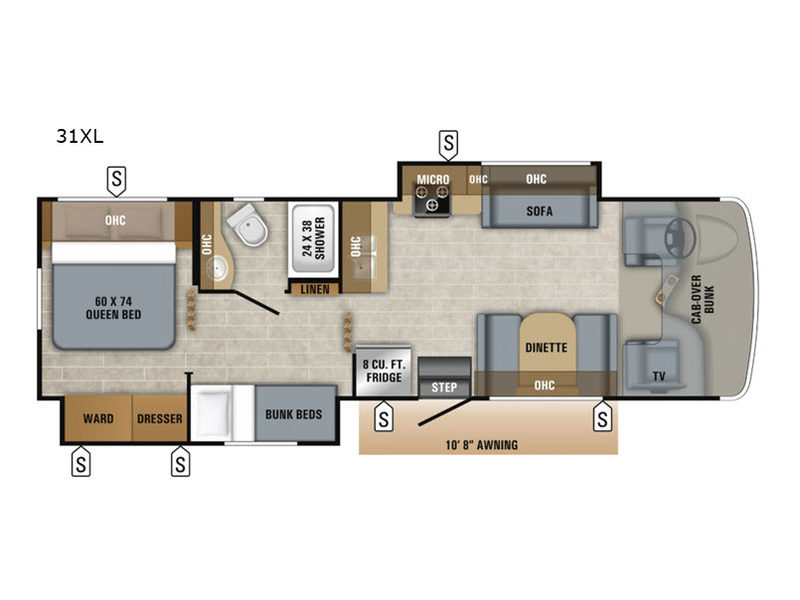

Everyone can cozy up in comfort thanks to a floorplan—31XL—that includes 300-pound rated bunks with dedicated LED lights and pleated night shades.

Rest up

Each Redhawk features a queen-sized bed with bedspread. Pleated shades and reading lights help you wind down at your own pace. You’ll find additional storage under the bed as well.

Comfort and convenience

Ample storage and counter space make washing up or getting ready simple in Redhawk’s master bathroom.

The master bathroom

The spacious shower features ABS walls, a skylight and a removable clothing rod. Your whole crew will appreciate the 6-gallon, gas/electric DSI auto-ignition water heater. And all floorplans also include a toilet with foot flush.

A premium ride

The Redhawk Class C motorhome is equipped with Jayco’s exclusive JRide® package, which includes a computer-balanced driveshaft, standard front and rear stabilizer bars, Hellwig® helper springs and rubber isolation body mounts.

Comforts galore

A 15,000-BTU ducted A/C and 31,000-BTU furnace with wall thermostat and auto-ignition helps adapt to your destinations. A 12V demand water pump and 6-gallon gas/electric DSI auto-ignition water heater plus filtration manage your water.

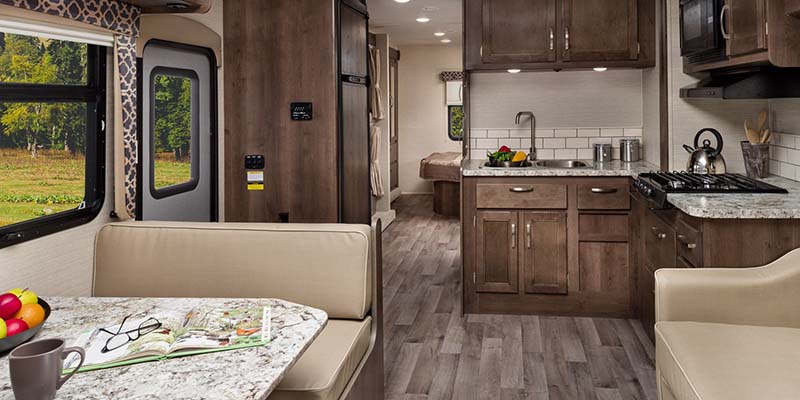

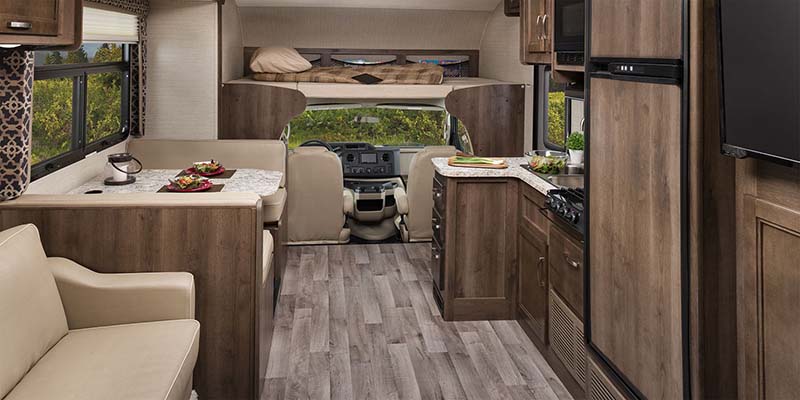

Inside Redhawk Motor Home Class C

Standard Exterior Equipment

  • Vacuum-bonded, laminated roof, floor and sidewalls
  • Bead-foam insulation (R-15 max roof, R-9 max floor, R-5 max walls)
  • Aluminum running boards
  • Fiberglass, radius-cornered entrance door with screen door
  • Electric-powered entrance step
  • Pass-through storage compartment with light (select models)
  • Onan 4,000-watt MicroQuiet generator
  • 42-lb. propane tank
  • 120V G.F.C.I.-protected exterior receptacle
  • 12V electrical system with 120V, 60-amp power converter
  • 30-amp power cord
  • Outside shower
  • 4″ bumper-tube sewer hose storage
  • Roof ladder
  • Leveling jack prep

Standard Driving Equipment

  • Ford E-450 chassis
  • Triton 6.8L EFI V-10 305 HP engine with 420 lbs./ft. torque
  • 6-speed automatic TorqShift series transmission with overdrive
  • Ford Chassis – 14,500-pound GVWR
  • Ford Chassis – 22,000-pound GCWR
  • Ford Chassis – 7,500-pound hitch with 750-lb tongue capacity and 7-pin plug
  • 120-amp alternator
  • 55-gallon fuel tank
  • Driver and passenger air bags
  • Power anti-lock brakes with power steering
  • Tilt steering wheel
  • Auxiliary start switch
  • A/C and cruise control
  • Remote-controlled, side-view mirrors
  • Power windows and door locks
  • Third brake light

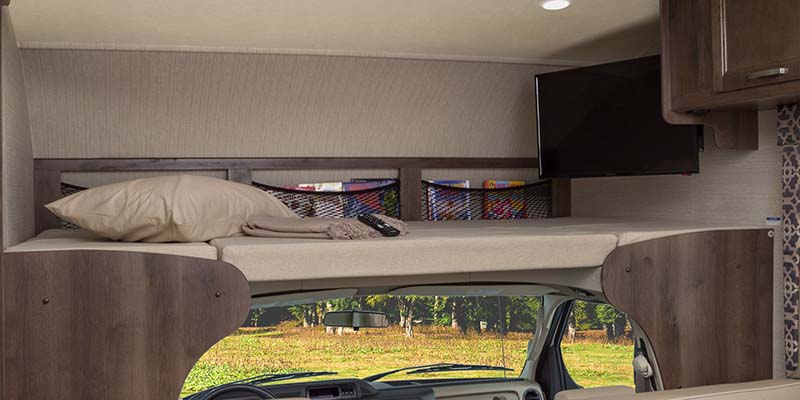

Redhawk Motor Home Class C Overhead Bunk
Jayco Redhawk Motor Home Class C Bunk Bed

Standard Interior Equipment

  • 84″ ceiling height
  • Ball bearing drawer guides
  • 3-burner range with 9,000-BTU SuperBurner and piezo igniter
  • Convection microwave oven (N/A 31XL)
  • 12V demand water pump
  • 6 gallon gas/electric DSI auto-ignition water heater
  • Water filtration system
  • Jayco-exlusive easy operation legless dinette table
  • Lap safety belts on all living area seats
  • Linoleum flooring
  • Interior command center
  • Cable TV hookup with RG-6 coax
  • Digital antenna with signal booster
  • 15,000-BTU ducted air conditioner
  • 31,000-BTU furnace with wall thermostat with auto-ignition
  • ABS shower with decorative surround
  • Removable clothing rod in shower
  • Skylight in shower
  • Toilet with foot flush
  • Queen-sized bed with bedspread
  • Under-bed storage
  • Large wardrobes
  • Full cab-over bunk with headboard (750-lb. rating)
  • Bunk beds (300-lb. rating) (31XL)

Customer Value Package (Mandatory)

  • JRIDE; Computer-balanced driveshaft, standard front and rear stabilizer bars, Hellwig helper springs, rubber isolation body mounts
  • Soundstream Infotainment Dash Radio w/GPS & CD/DVD Player
  • One-Piece seamless fiberglass front cap
  • 12V electric patio awning
  • Black holding tank sprayer
  • Rear back-up camera and monitor
  • Heated holding tanks (12V pads)
  • 8 cu. ft. flush-mount, double-door refrigerator
  • 32” LED HDTV

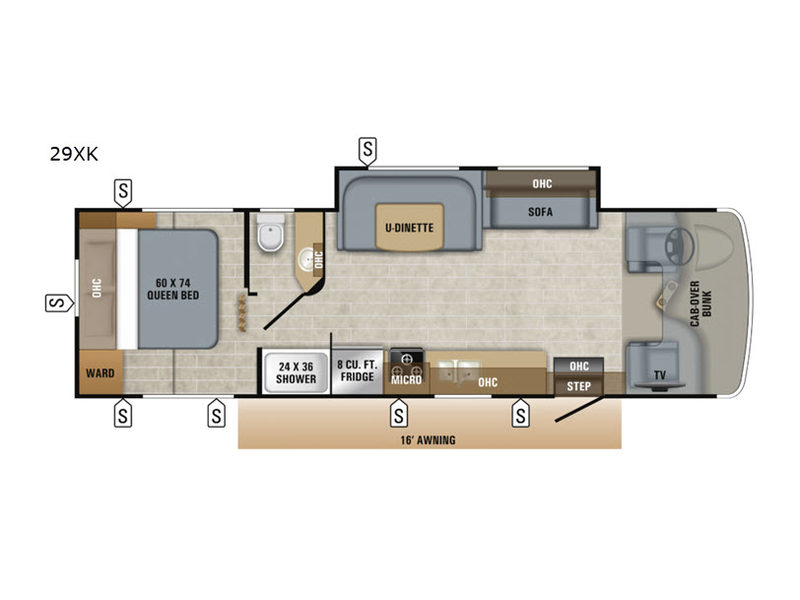

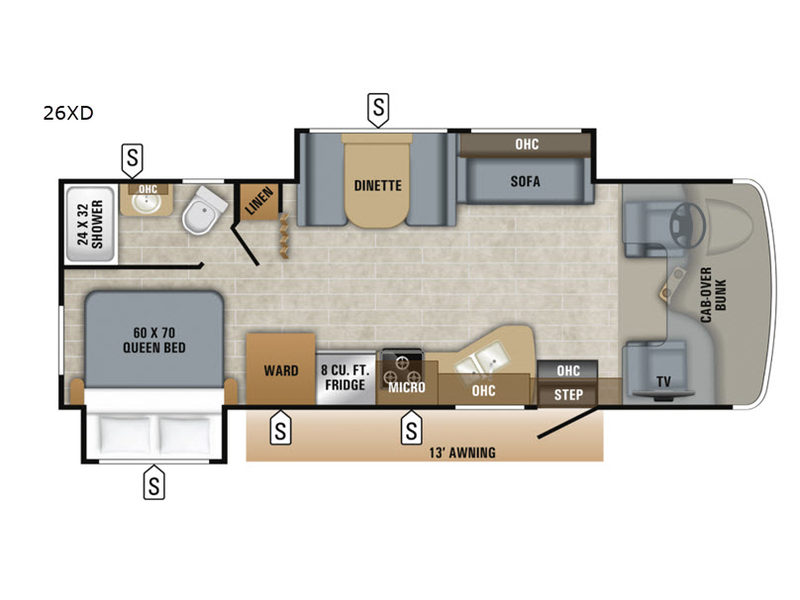

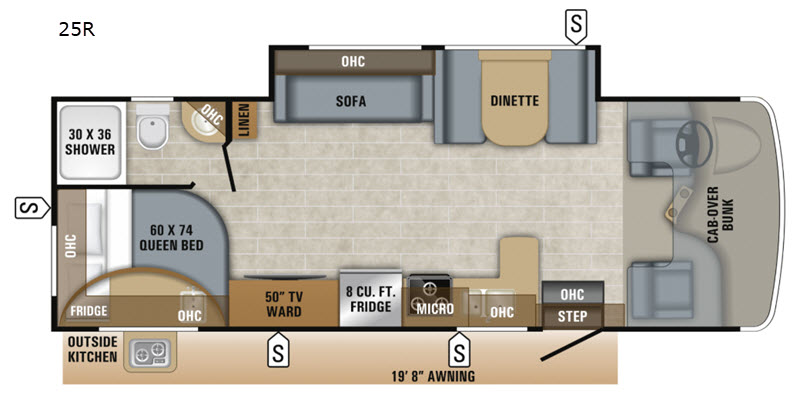

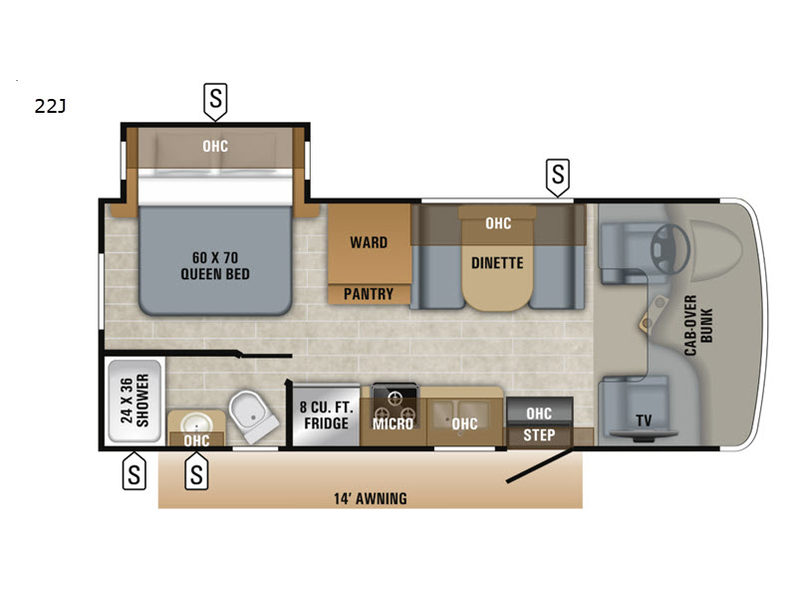

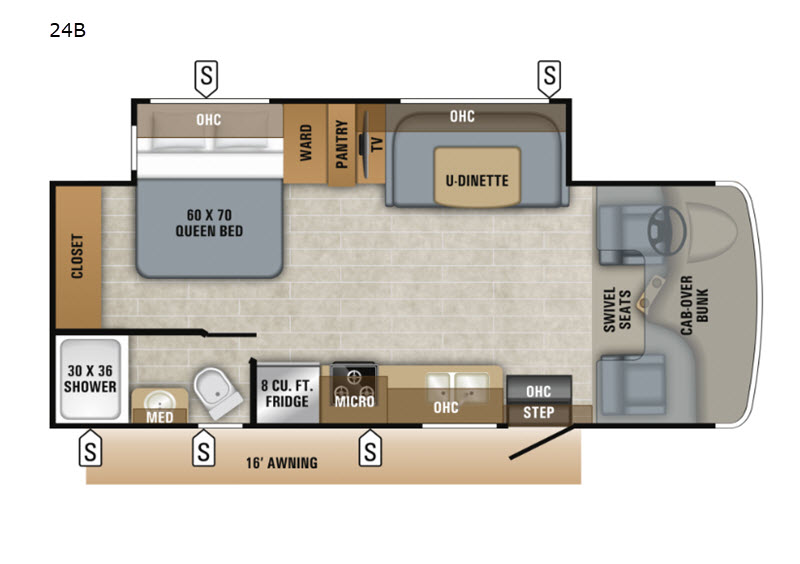

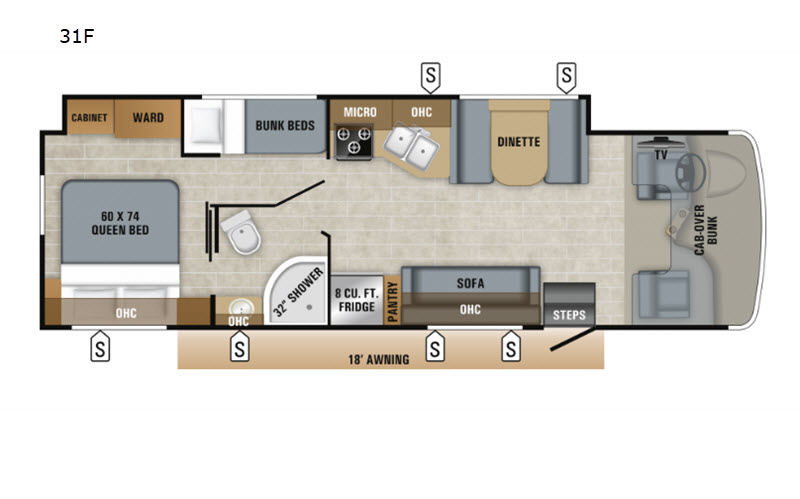

View Redhawk Floorplans

Showing 1 - 6 of 6
Favorites ()

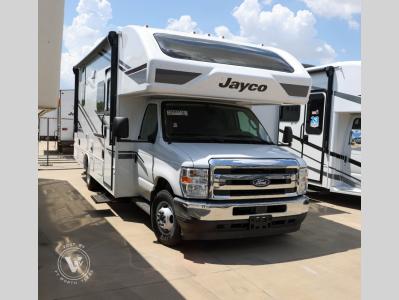

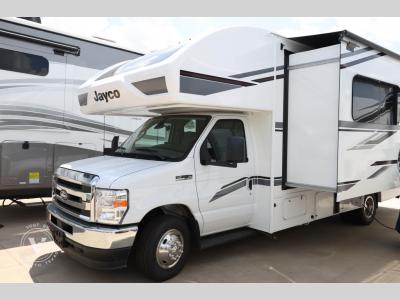

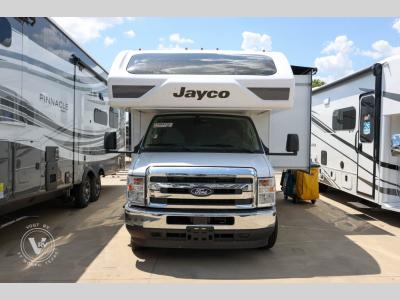

Motor Home Class C
