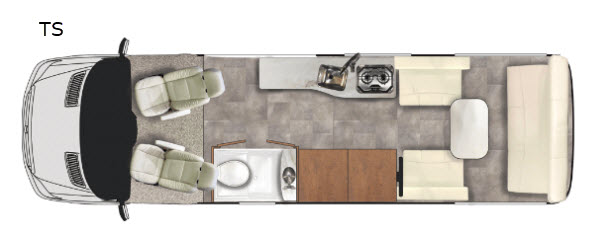

The Plateau TS
The Plateau TS layout provides for a large bathroom, six cubic foot fridge and a full size wardrobe while still leaving the bank of passenger side windows clear and unobstructed.
The combination of the fully opening side door, roll up screen package and generous 6 foot Corian® countertop allow for a preparation and serving area that lets you enjoy the outdoors wherever you are camped. Solid maple cabinetry, luxurious Ultraleather® upholstery and touch screen control panels make the Plateau TS a rich and impeccably styled Class B motorhome.
| Fuel Type | Diesel |
| 24.5 US Gal / 93 L | |
| Overall Height | 9′ 8″ / 295 cm |
| LengthBumper to bumper | 22′ 9″ / 693 cm |
| Fresh Water | 24 US Gal / 91 L |
| Grey Water | 35 US Gal / 132 L |
| Black Water | 12 US Gal / 45.9 L |
| LP Tank capacity | 8.16US Gal / 31L |
| Towing capacity | 4,220 lbs / 1,914 kgs |
| Standard Engine | 3.0L V6 Blue Tec |
Weights and Measures

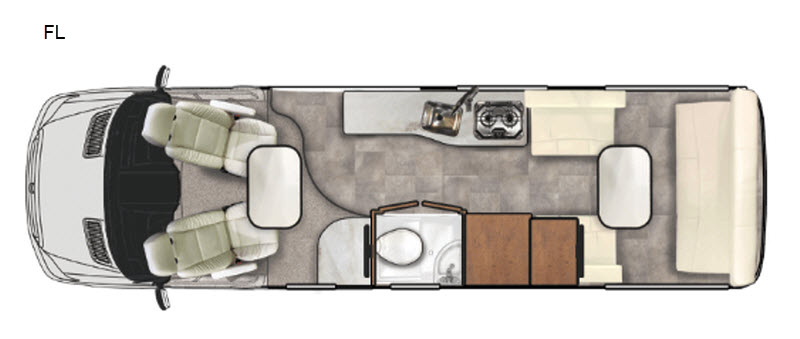

The Plateau FL

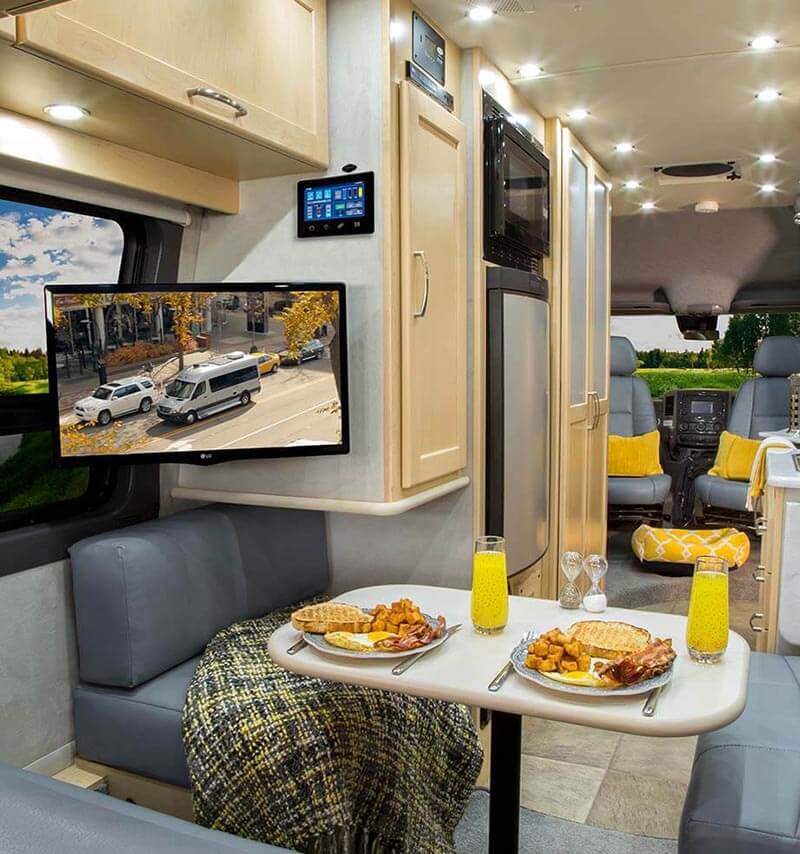

The Plateau FL makes optimal use of its space by melding the benefits of a front lounge area with the ease and practicality of the rear power sofa arrangement. The front lounge utilizes the two captains chairs that swivel to form a second dining and work area that comes equipped with a Corian® topped workstation, 24” flat screen TV, reclining chairs and optional front table location.
The Plateau FL will accommodate a wide range of lifestyles with its incredibly functional layout.
| Fuel Type | Diesel |
| 24.5 US Gal / 93 L | |
| Overall Height | 9′ 8″ / 295 cm |
| LengthBumper to bumper | 22′ 9″ / 693 cm |
| Fresh Water | 24 US Gal / 91 L |
| Grey Water | 35 US Gal / 132 L |
| Black Water | 10 US Gal / 38 L |
| LP Tank capacity | 8.16 US Gal / 31 L |
| Towing capacity | 4,220 lbs / 1,914 kgs |
| Standard Engine | 3.0L V6 Blue Tec |
Weights and Measures
Plateau TS Chassis Specs
| GVWR | 11,030 LB/5,003 KGW DUAL REAR WHEEL |
| STANDARD ENGINE | 3.0L V6 BLUE TEC TURBO DIESEL |
| HP RATING | 3.0L V6-188HP |
| TORQUE RATING | 3.0L V6-325 LB-FT @ 1,400-2400 RPM |
| WHEELBASE | 170 INCHES |
| TRANSMISSION | 5 SP AUTO (3.0 L only) |
| REAR AXLE RATIO | 4:18 RATIO |
| FUEL TYPE /TANK CAPACITY | DIESEL/24.5 US GAL |
| LOCKING FUEL FILL | YES |
| CHASSIS AIR CONDITIONING | YES |
| POWER WINDOW, DOOR LOCKS, MIRRORS | YES |
| REMOTE KEYLESS ENTRY | YES |
| STEERING WHEEL | TILT AND TELESCOPIC |
| BRAKING SYSTEM (4 WHEEL) | DISC BRAKES WITH ABS |
| STABILITY AND TRACTION CONTROL | ADAPTIVE ELECTRONIC |
| TIRES (ALL SEASON) | LT215/85R/16 |
| ALTERNATOR/CHASSIS BATTERY | 14V 200 AMP/12V 100AH |
| AIR BAGS (DRIVER AND PASSENGER) | YES |
| IN-DASH NAVIGATION/AUDIO | YES |
| REAR VIEW CAMERA SYSTEM | YES |
| SWIVEL SEATING (DRIVER AND PASSENGER) | YES |
| SMART WHEEL FUNCTIONS | STANDARD |
| MERCEDES COLLISION PREVENTION ASSIST | STANDARD |
| MERCEDES HIGH BEAM ASSIST | STANDARD |
| MERCEDES BLIND SPOT ASSIST | STANDARD |
| MERCEDES LANE KEEPING ASSIST | STANDARD |
Plateau TS Chassis Features
| Bathroom | Private Enclosed Wet Bath with Shower Thetford China Bowl Pedal Flush Toilet Vanity with Storage Medicine Cabinet Stainless Steel Sink Corian Counter Top |
| Electrical | Dual 7” Touch Screen Control Panels
Multiplex Wiring Dimmable Lighting |
| Entertainment | 24″ LED LCD TV On Swing Out Arm Blu-ray Player Cable TV Hook Up Winegard Digital TV Antenna With Booster |
| Exterior | Power Awning 5000 Pound Hitch and Wiring LED Porch Light 110 Volt Plug Awning Style Frameless Windows Hand Held Shower |
| Heating & Cooling | 11,000 Btu Roof Top Air Conditioner Low Profile Fan-Tastic Vent Fan With Rain Sensor 16,000 Btu Auto Ignite Lp Furnace |
| Interior | Hardwood Maple Cabinet Doors Blum European Hinges Hafele Cabinet Door Stays Co, LP & Smoke Detectors Fire Extinguisher Vinyl Soft Touch Headliner Vinyl Flooring MCD Roller Shades |
| Kitchen | 3-Way Six Cubic Foot Double Door Fridge Microwave/Convection Oven 2 Burner Flush Mount LP Stove Single Lever Faucet Stainless Steel Sink Corian Counter Top Full Extension Ball Bearing Drawer Glides With Soft Close Flip Up Counter Extension |
| Plumbing & LP | Shur Flo Demand Water System On Demand Water Heater Water Heater By Pass Monitor Panel Fresh, Grey, Black, LP and Battery LP Tank With Power Shut Off |
| Rear Seating Area | Power Sofa with Two Three Point Seat Belts Memory Foam Cushions Ultraleather Fabric Hemmed Loose Lay Carpet |
Plateau FL Chassis Features
| Bathroom | Private Enclosed Wet Bath with Shower Thetford China Bowl Pedal Flush Toilet Corner sink |
| Electrical | Dual 7” Touch Screen Control PanelsMultiplex Wiring
Dimmable Lighting |
| Entertainment | Rear 24″ LED LCD TV On Swing Out Arm Rear Blu-ray Player Front 24″ LED LCD TV On Swing Out Arm Cable TV Hook Up Winegard Digital TV Antenna With Booster |
| Exterior | Power Awning 5000 Pound Hitch and Wiring LED Porch Light 110 Volt Plug Awning Style Frameless Windows |
| Heating & Cooling | 11,000 BTU Roof Top Air Conditioner Low Profile Fan-Tastic Vent Fan With Rain Sensor 16,000 BTU Auto Ignite LP Furnace |
| Interior | Hardwood Maple Cabinet Doors Blum European Hinges Hafele Cabinet Door Stays Co, LP & Smoke Detectors Fire Extinguisher Vinyl Soft Touch Headliner Vinyl Flooring MCD Roller Shades |
| Kitchen | 3-Way 3.8 Cubic Foot Fridge Microwave/Convection Oven 2 Burner Flush Mount LP Stove Single Lever Faucet Stainless Steel Sink Corian Counter Top Full Extension Ball Bearing Drawer Glides With Soft Close Flip Up Counter Extension |
| Plumbing & LP | Shur Flo Demand Water System On Demand Water Water Heater By Pass Monitor Panel Fresh, Grey, Black, LP and Battery LP Tank With Power Shut Off |
| Rear Seating Area | Power Sofa with Two Three Point Seat Belts Memory Foam Cushions Ultraleather Fabric Hemmed Loose Lay Carpet |
Plateau FL Chassis Specs
View Plateau Floorplans
