Used 2019 Tiffin Motorhomes Wayfarer 25 RW

Motor Home Class C - Diesel

Stock #J9774550A19

Vogt RV World

1 of 6

Specifications

Sleeps	5	Slides	1
Length	25 ft 7 in	Ext Width	7 ft 6 in
Ext Height	11 ft 4 in	Int Height	6 ft 8 in
Hitch Weight	5000 lbs	GVWR	11030 lbs
Fresh Water Capacity	38 gals	Grey Water Capacity	36 gals
Black Water Capacity	28 gals	Furnace BTU	30000 btu
Fuel Type	Diesel	Miles	23098
Engine	3.0L V6 Turbo Diesel	Chassis	Mercedes-Benz
Horsepower	188 hp	Fuel Capacity	26.4 gals
Wheelbase	170.3 in	Available Beds	Queen Size Murphy
Torque	325 ft-lb	Refrigerator Type	Gas/Electric
Refrigerator Size	6.5 cu ft	Convection Cooking	Yes
Cooktop Burners	2	Shower Size	24" x 36"
Number of Awnings	1	Axle Weight Front	4410 lbs
Axle Weight Rear	7720 lbs	LP Tank Capacity	20 gals
Water Heater Type	Girard Instant	AC BTU	13500 btu
Basement Storage	32 cu. ft.	TV Info	LR Swivel Arm TV
Awning Info	Carefree 14'	Gross Combined Weight	15250 lbs
Shower Type	Standard	Electrical Service	30 amp
VIN	WDAPF4CC9J9774550

Description

Tiffin Motorhomes Wayfarer class C diesel coach 25 RW highlights:

Rear Full Bath
Murphy Bed
Swivel Arm 32" TV
Loft

You will love the versatility that this Wayfarer diesel coach allows your family when traveling. With a queen Murphy bed/sofa you can easily make it fit your needs all while on the road. The large slide along the driver's side allows for plenty of space in this 7-1/2 foot wide model. No worries about when or where you will stop on any journey since you have all the amenities you need for any place you decide to make home right at your fingertips. A complete kitchen, including a two burner cooktop and microwave oven, make it easy to create meals and snacks on the go. The rear full bath is another great amenity featuring a 24" x 36" shower with skylight. For your little ones, you can easily use the booth dinette or choose the optional 70" tri-fold sofa/bed in its place, or there is the over the cab loft bed that might be fun as well. In the loft area, you will find a swivel arm 32" TV that can easily be viewed throughout the coach. Another 32" TV in front the Murphy bed allows you to easily watch a move while it is set up in the sofa position, or while in bed.

With any Tiffin Wayfarer class C diesel motorhome you will enjoy the luxurious Mercedes-Benz chassis at a price your family can afford. Inside each Wayfarer you will enjoy high-end finishes throughout, including hardwood cabinetry and premium-grade linoleum. Having the ability to make meals or heat up leftovers in a convection microwave anywhere you stop, plus having access to full bathroom and sleeping arrangements make being on the road that much easier. These models also include a 3.2 kw diesel generator, a 13.5k Coleman roof mounted AC, and a 30k BTU propane ducted furnace so you can camp during the spring or winter!

Features

Standard Features (2019)

General Mechanical

Mercedes® Chassis
3.0 6-Cylinder Turbo Diesel Engine with 5-speed Automatic Tip Shift Transmission 188 HP/325 lb Torque
GVWR: 11,030 lb (24 BW)
GCWR: 15,250 lb(24 BW)
GAWR - Front: 4,410 lb (24 BW)
GAWR - Rear: 7,720 lb (24 BW)
Lighting Package with Bi-xenon Headlamps
Headlamp Washing System
Multi-function Steering with Trip Computer
Light and Rain Sensor
Heated/Electric Adjustable Mirrors
Windshield with Filter Brand
Overhead Control Panel with Reading Lamps
Lane Keeping Assist
Collision Prevention Assist
High Beam Assist
Stainless Steel Wheel Liners
5,000 lb Rated Hitch with 500 lb Vertical Tongue Weight and 7-pin Connector
SumoSprings Ride Assist System
Overall Length (Approximate*): 25' 7'' (24 BW)
Overall Height with Roof Air (Maximum): 11' 4" (24 BW)
Interior Height: 6’ 8' (24 BW)
Overall Width*: 7’ 6” (24 BW)
Interior Width: 7’ 3” (24 BW)
Fresh Water (Gallons): 32 (24 BW, 25 QW)
Fresh Water (Gallons) : 38 (25 RW)
Fresh Water (Gallons) : 37 (24 FW)
Fresh Water (Gallons) :40 (24 TW)
Black Water (Gallons): 27 (24 BW, 24 TW, 25QW)
Black Water (Gallons) : 28 (25RW)
Black Water (Gallons) : 29 (24 FW)
Grey Water (Gallons): 33 (24 BW, 24 TW, 25QW)
Grey Water (Gallons) : 36 (25 RW)
Grey Water (Gallons) : 30 (24 FW)
LPG Tank (Gallons; can only be filled to 80% capacity): 20 gallons (16 usable)
Basement Storage (Cubic Feet - Approximate): 54 (24 BW, 25QW)
Basement Storage (Cubic Feel - Approximate) : 32 (25 RW, 24 FW)
Basement Storage (Cubic Feet -Approximate) : 68 (24 TW)
Wheel Base: 170.3" (24 BW)
Trailer Hitch Capacity**: 5,000 lb
Fuel Tank: 26.4 Gallons (24 BW)
DEF Tank (Gallons): 4.8 (24 BW)
Load Adaptive Electronic Stability (ESP

General Exterior

Two Seamless Slide-outs
HD TV Antenna with Amplifier
Two 12 V House Batteries (Group 27/180 Amp Hours)
30 Amp 110 V House Service
Power Cord - 30' Permanently Attached
3.2 kw Diesel Generator
1000 Watt Inverter Pure Sine
110 V and 12 V House Load Center with Power Converter
HD Over-the-Air TV Antenna
Prep for Satellite
Prep for Winegard® Dome System
Pre-wired for Solar Panels
Park Cable and Ground
Satellite Hook-up
Carefree 14' Awning
Automatic Lights in Exterior Compartment Doors
13.5 k Coleman Roof Mounted AC
Wall-mount Thermostat with Built-in Temperature Sensor
30K BTU Propane Ducted Furnace
12 V Engineered Wiring Harnesses
Girard Instant Hot Water Heater
Entrance Door Assist Handle

General Exterior Options

Exterior TV
15 k Roof Mounted AC with Heat Pump
Solar Panels
Equalizer 4-point Leveling Jacks
Electric Stabilizers
Truma® Comfort Plus Instant Hot Water Heater
2000 Watt Inverter Pure Sine (24 BW, 24 TW, 25QW, 24 FW))

General Interior

Separate Speaker Zones
Stereo System
LED Lights
Spyder® Multiplex Coach Control System
Satellite System Compatible
Privacy Shades
2 Captain’s Chair Lounge Cushions
Soft Vinyl Ceiling
Professionally Designed Interior Decor Packages
Premium Fabric Suites
Combination Carbon Monoxide and Propane Detector

General Interior Options

Chestnut, Honeycomb, or Russet Cabinets
Central Vacuum System

Cockpit

USB Port
Radio
Back-up Camera
Power Cab Door Locks
Power Cab Door Windows
Power Mirrors with Defrost
Cruise Control
Tilt Telescoping Steering Wheel
Chassis/House Battery Radio Power Switch
Sun Visors
12 V Power Outlet
Central Cab Locking with 2 Remotes
Windshield Shades
Swivel Seat Base for Both Driver and Passenger Seat
Driver and Passenger Door Courtesy Lights

Cockpit Options

In-dash Navigation System
Premium Sliding Window and Windshield Shade
Side Cameras (Must have In-dash Nav)

Living Area

Living Area TV
Tinted Living Area Windows
Overhead Bunk
Leatherette Sofa w/Trifold Hide-A-Bed (24 BW 24 TW)
Face-to-face Dinette On Driver Side (25 RW, 24 FW)
House Radio/DVD/Bluetooth

Living Area Options

Overhead Entertainment Center
70" Sofa with Hide-a-bed (54" x 74") (25 RW)
Theater Seats on Driver Side (25 RW, 24 FW)
Leatherette Sofa w/trifold Hide-a-bed on Driver Side ( 25 QW, 24 FW)

Kitchen

Cooktop with Built-in Cover
Convection Microwave
5 Cubic Foot Refrigerator w/2 Batteries (24 BW, 24 TW)
6.5 Cubic Foot Gas/Electric Refrigerator (25 RW, 25 QW, 24 FW)
Single Bowl Sink
Designer Faucet
Spice Rack
Over-the-Counter Lighting
Under-the-Counter Lighting
Fire Extinguisher
110 V Outlet

Bedroom

Night Stands
LED Reading Lights
Queen Mattress (60" x 74") (24 BW, 25QW)
Queen Sofa Murphy Bed (60" x 74") (24FW, 25RW)
Queen Murphy Bed (60" x 74") (24 FW)
Twin Mattress (32" x 76") (24 TW)
Two Wardrobes
Inverted Outlets in Bedroom for CPAP Machine
USB Port

Bedroom Options

Bedroom TV (24 BW, 24 TW, 25QW)
Twin beds convert to King Mattress (86" x 76") (24 TW)
Bedroom Lift-up TV ( 24 FW)

Bathroom (25 RW ONLY)

Shower (24" x 36")
Porcelain Vessel Sink with Chrome Faucet
Vanity Storage

See us for a complete list of features and available options.

All standard features and specifications are subject to change.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Excellent service and cheerful attitudes
Yesterday I rolled in to your Service Center at 5:10 pm with a lighting malfunction on my vehicle to the trailer.
The service guy called some of your guys on their way back to the shop from a RV show. They were told I would be waiting at the north store when they arrive in about 30 minutes. The guys

Jim
Testimonial
Jennifer, Ann and l want to sincerely thank you and Mark for making our service visit a truly satisfying experience. It was a pleasure to meet you guys. Everything was taken care of and if I can be bold we enjoyed the experience. As a Vogt customer since 2009 I was always appreciative of what I called

Earl from Fort Worth, TX
high level of professionalism
We made it home towing our new Airstream Sport yesterday without incidents. We thank you and the Vogt staff who did the “make ready” and held a little school for us on the Sport. We saw a high level of professionalism and competence we have not witnessed in a very long time. It was wonderful and our

Tom

We are here to help, call us at
817-831-1800 or Contact Us

We are here to help!

817-831-1800
Contact Us
Contact Sales

;

(Payments from) based on New 15% down or Used 20% down
Based on approved credit
*On the amount financed over $50k at 180 months/8.99% on Travel Trailers and 7.99% on Motorhomes.
*On the amount financed $25k - $49,999 at 144 months/8.99% on Travel Trailers and 7.99% on Motorhomes.
*On the amount financed $10k - $24,999 at 120 months/8.99% on Travel Trailers and 7.99% on Motorhomes.
Vogt RV Centers - Redesign is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @817-831-1800 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

Used 2019 Tiffin Motorhomes Wayfarer 25 RW

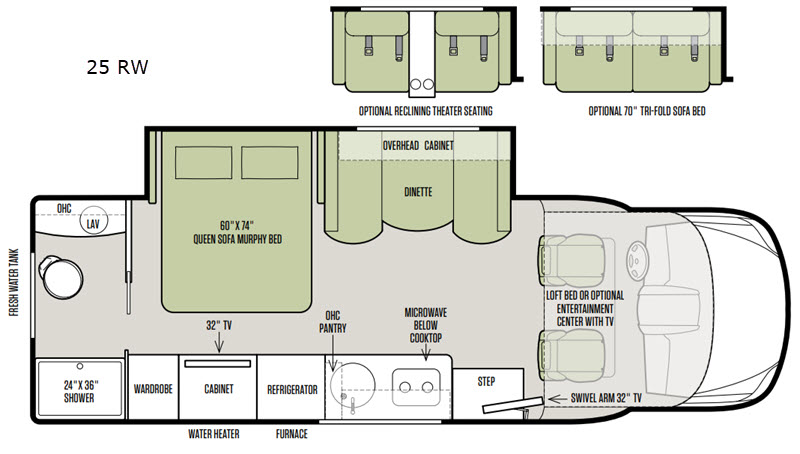

25 RW Floorplan
